CMM Upgrades
CMM Upgrades to Improve Throughput
The structure of a coordinate measuring machine (CMM) is built to measure for 20 years or more. But unfortunately, the control systems, electronics and software aren’t so long lasting. Not only will they need more and more maintenance and support but they can quickly become outdated as new technology is developed.
CMMs are also expensive pieces of capital equipment to replace which can be hard to justify. There are also logistical considerations around moving a heavy, large piece of equipment out of a lab and a new piece in.

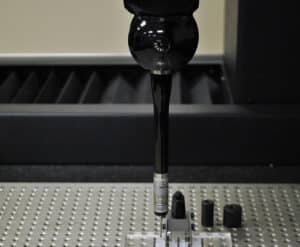

A coordinate measuring machine (CMM) is an integral piece of inspection equipment. Using a touch-trigger (or other probe) it takes a series of highly accurate measurements along the X, Y, and Z axes along the surface of an object. This method is much more reliable than utilizing traditional hand tools due to its repeatability and precision.
Options for upgrades:
Before getting rid of that CMM, take a look at some of the upgrade options we offer that may extend the life of your current system. Our team can help you determine the best upgrade options for your application.
There are many benefits to installing new technology on your older hardware, including:
- Latest software packages have easy-to-use, intuitive user interfaces to reduce programming time
- They integrate with the latest versions of CAD formats
- Have the capability to take in data from multiple sensors which enables the right tool for the job
- Can create CMM programs offline to improve productivity
- Ability to use the same software package across measurement devices, including portable CMMs
Software packages that Cross recommends:
- Metrologic – Powerful Advanced GD&T applications
- CMM Manager – One of the most user friendly CMM programming softwares on the market
Modern probing technology can greatly enhance your measurement capability, from automated stylus changing to faster measurement speed with more accuracy. Here are some of the latest probe options.
Rennishaw Probing Systems from 5 axis solutions like the ph-20 or REVO or PH10 solutions to including scanning probes.
Whether you are replacing obsolete equipment or ensuring compatibility with new software and probes, a new CMM controller can:
- Blend machine moves to increase performance
- Fully utilize the latest probe technology for optimum efficiency
- Automate CMM functions including loading with robots (hint: Cross can help with the robots and integration too! Find out more about automated quality inspection and machine tending.
- Support 4th axis rotary tables
Upgraded CMMs Offer a Range of Benefits
Upgrading CMM control systems, electronics and software is an alternative to purchasing new equipment. Generally, the upgrade will be less expensive than purchasing a new CMM and will also:
Increase Productivity
By using the latest sensor technology and rapid programming software, you can up your throughput to save time and money. Our partners, Metrologic, did a time study using an older 3 axis system vs. an up-to-date 5 axis one. Learn More
Reduce Cost
Not only is upgrading a CMM less expensive than buying a new one, but an upgraded model will be more reliable and need less service.
Get Better Insight
Using the latest scanners and touch probes will give you a much higher level of measurement information, helping you to better control your processes.
Compatibility Across Multiple Measuring Devices
Standardizing on one software package for your fixed and portable CMMs reduces training and support needs.
CMM Brands Represented
Why Choose Cross Company For A CMM Upgrade?
At Cross Precision Measurement, our goal is to always provide our customers with the dimensional metrology equipment that they need. Whether it’s CMMs, or air gages, we want to provide you with the metrological tools your operators need to succeed.
In the industrial and manufacturing world, it’s always worth finding ways to optimize your process. That little bit of extra productivity can make all the difference in an increasingly competitive marketplace and can give you a competitive advantage over your competitors.
Between our products, calibration services, inspection services, and custom solutions, Cross Precision Measurement is a single-source dimensional metrology equipment and service provider to many in the industrial world. And we can provide those same world-class services and industry-leading products to your operation, too.
