GROTH Pilot Operated Relief Valves
Product Overview
Pilot operated relief valves use tank pressure to keep the valve seat closed and are typically used when operating close to the MAWP. As pressure rises, the plate force overcomes the spring force, causing the dome to leak and the valve to open. POVs reduce risk not only by relieving tank pressure but also help keep you compliant with strict environmental regulations. They also improve efficiency by controlling losses due to evaporation. Groth offers two types of pilot operated relief valves, the 1600 series and the 1400 series.
All Groth pilot valves feature:
- Achieve full flow at 10% overpressure
- Sizes ranging from 2″ – 12″
- Available in aluminum, steel and stainless steel
- Modulating or snap acting

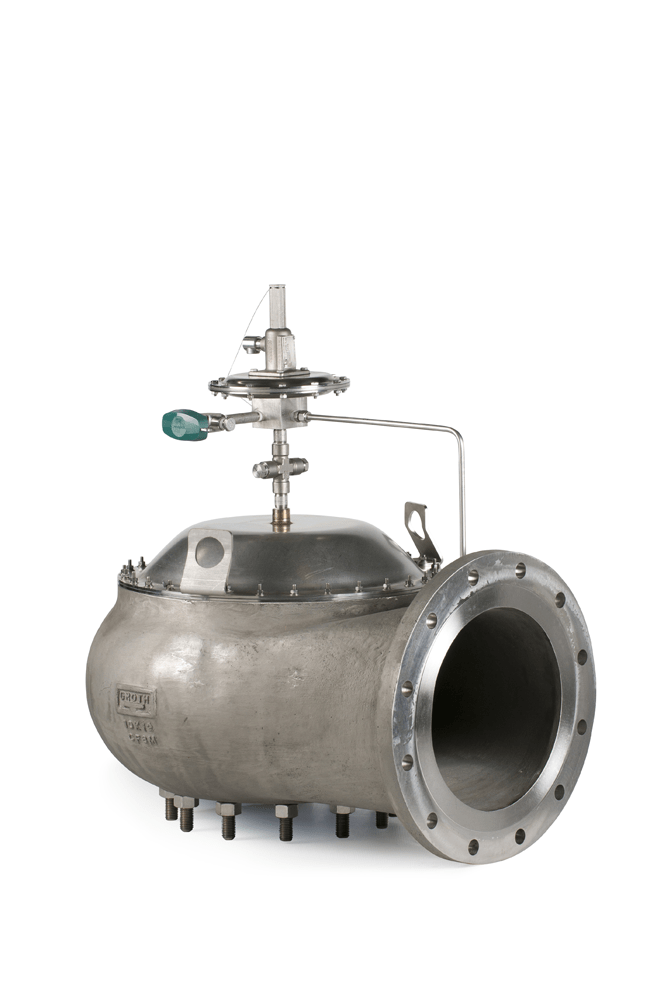

Specific to 1600 series:
- Two types of sealing, either o-ring or film seat options
- Available in pressure only or vacuum only
- Superior sealing and low temperature rating (-320F), suitable for cryogenic service

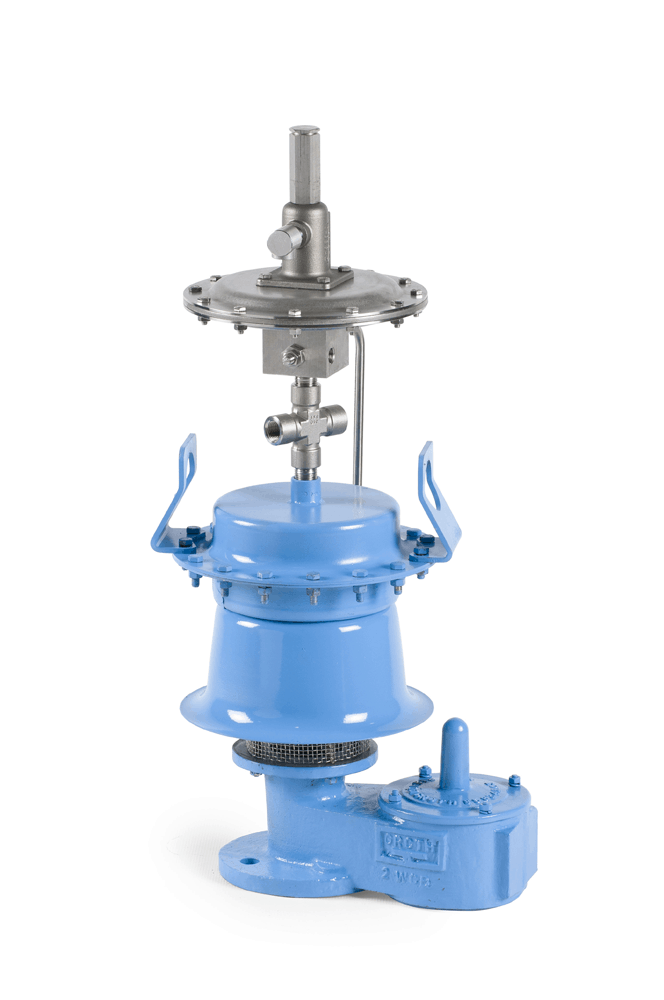

Specific to 1400 series:
- Available in pressure only and pressure/vacuum combination
- Four different piping configurations available
- Low vacuum settings(to 0.5 osig)
If you’re looking for a relief valve for your process application, consider the GROTH product line. For more information and to correctly specify your valve, contact the experts at Cross’s process solutions team today!
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer GROTH in the following areas:
