Ace Measuring Arm
Product Overview

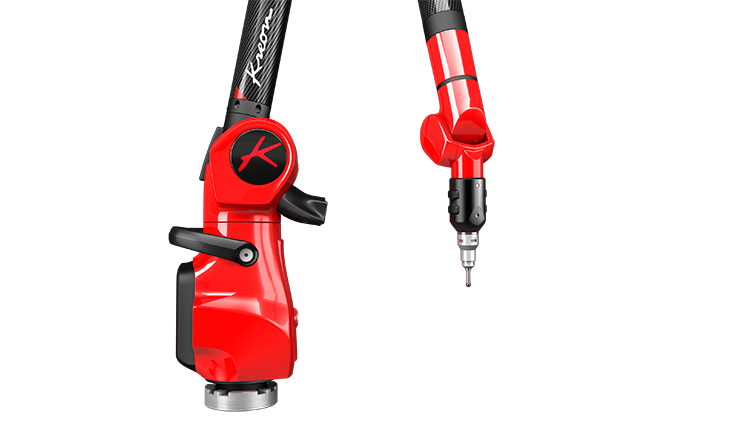

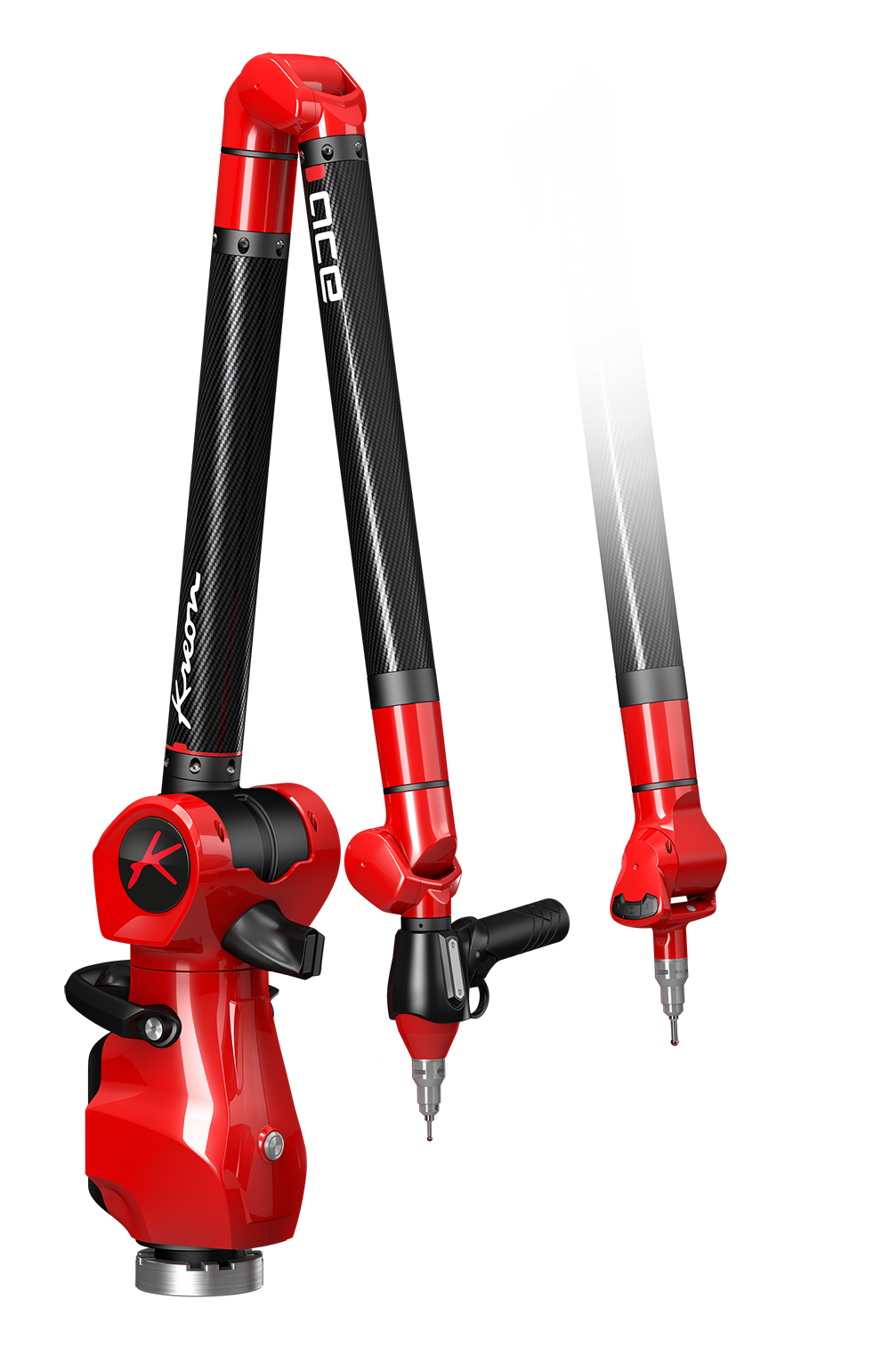

The Ace measuring arm from Kreon is the perfect system for contact and non-contact 3D measurements. It’s a easy to use, portable CMM with a range of sizes and features available in a number of configurations. Do you need a 6 or 7 axis measuring arm? Ace 6 axis systems are built for probing and accuracy, while Ace 7 axis systems are the ideal equipment for scanning ergonomics.
As a distributor for Kreon in the U.S. our precision measurement group offers Ace measuring arm systems throughout our sales territories in the U.S. For more information about the Ace measuring arm, or to see which portable CMM is right for your application, contact a local team member today.
Features and Benefits
The Kreon Ace measuring arm offers:

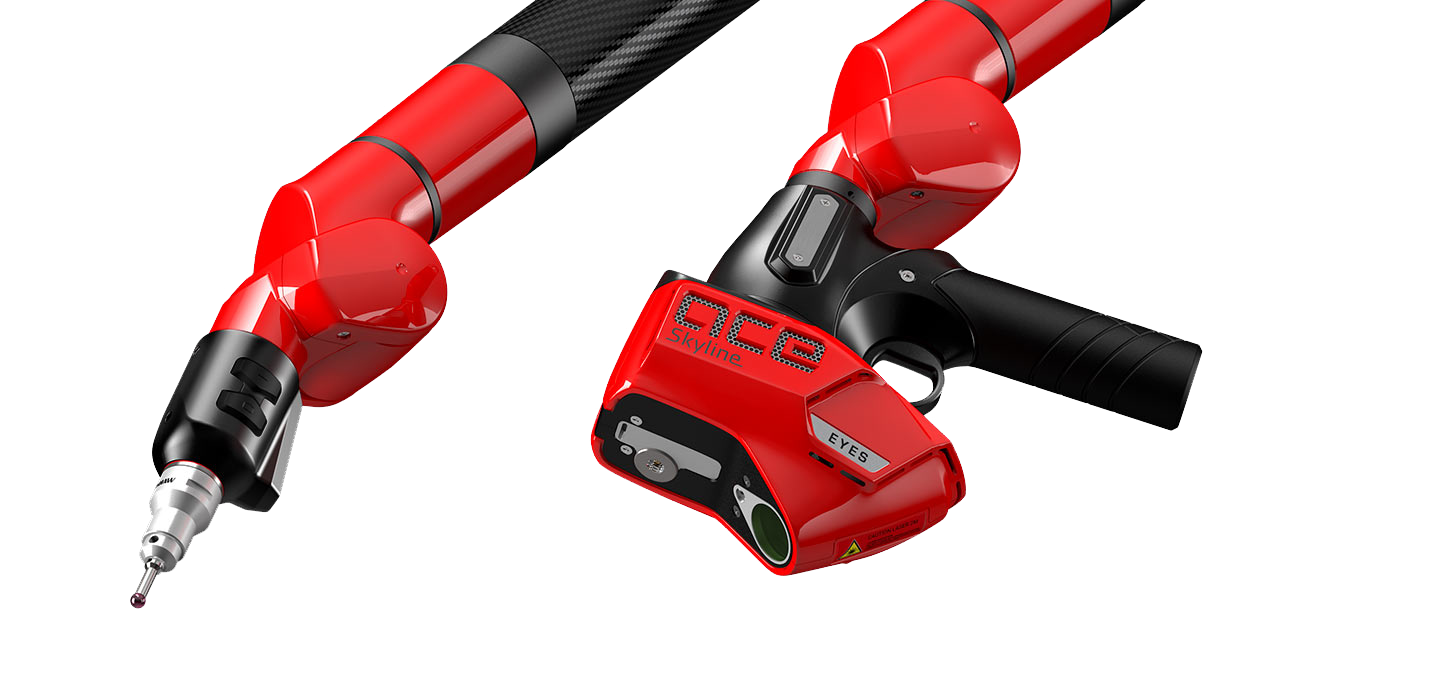

Kreon scanners and probe ready – Interchangeable scanner and probe thanks to the Renishaw interface. Automatic probe size detection
Thermoregulated arm for a better accuracy, non depending on air temperature
Robust but light carbon fiber tube structure
Automatic switch to pause mode as software limits approach
An internal counterbalance makes the arm light and easy to handle
Unlimited rotation on the main axis

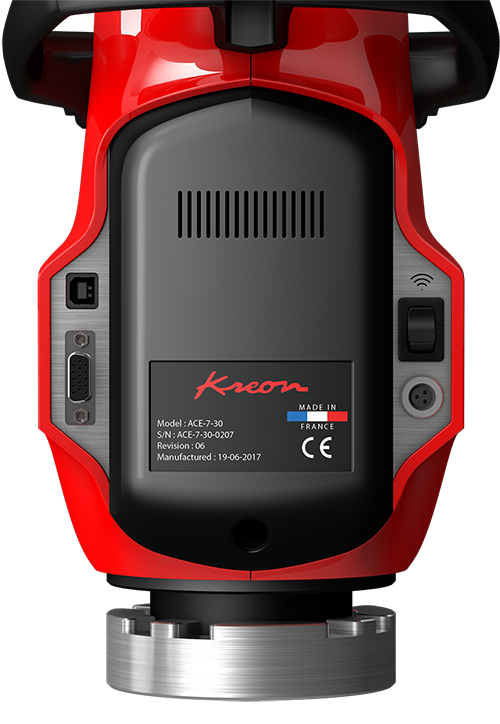

Wi-Fi connection with PC
Integrated battery for 8 hours probing or 4 hours scanning
Universal Brunson attachment
And more…
ACE+ is the best of ACE and even more
The ACE range from Kreon has two models: the ACE and the ACE+ measuring arm. Working with the latest encoder technology, the ACE+ arm also boasts an advanced calibration method which ensures exceptional levels of performance. Cross also offers the Ace+ throughout our territories in the U.S.
3D Scanning With Skyline
With high resolution and high accuracy, Skyline 3D scanners offer an advanced range with blue laser measuring technology. Work with a Cross precision measurement expert to see if an ACE or ACE+ portable measuring arm combined with the Skyline 3D scanner is best for your application.
Zenith Software
Kreon’s Zenith 3D scanning software offers efficiency with fast point cloud acquisition and CAD comparison in an easy to use software package. Best of all, it’s free with the purchase of any Ace or Ace+ measuring arm. Ask a Cross precision measurement expert about paring Zenith software with your Ace system and how it can improve efficiency in your process.
A Range of Measuring Envelopes

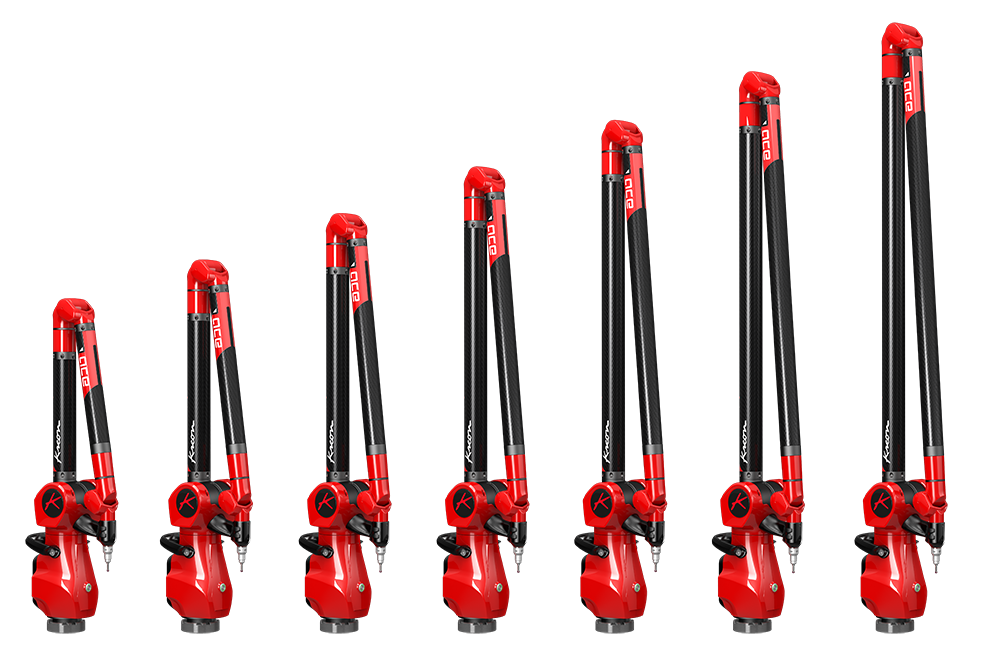

Work with the right equipment for you application. For both ergonomics and efficiency, Kreon has developed a range of 6 and 7 axis Ace arms from 2 m to 5 m working volume. Take a look at the full technical specifications for each at Kreon3d.com.
Also, take a look at the ranges of the ACE+ model.
