Zenith Software
Product Overview
Zenith software for Kreon measuring arms focuses on the essential functions used in most applications for acquisition and 3D measurement of industrial parts. 3D scanning with Zenith offers efficiency with fast point cloud acquisition and CAD comparison in an easy to use software package. As an added bonus, Kreon offers Zenith software free with the purchase of an model of ACE measuring arm.
As a distributor for Kreon in the U.S. our precision measurement group can work with your team to determine how Zenith software can benefit your operation. For more information about Zenith software, or to see which Kreon scanner is right for your application, contact a local team member today.
Features and Benefits
Kreon Zenith software offers:
Fast point cloud acquisition
Color mapping
Extraction from CAD

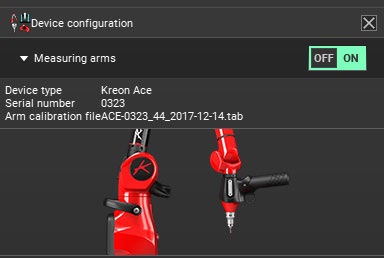

One-click connection with Kreon arms and scanners
Fully compatible with all Kreon measuring arms and scanning arms
Fast and reliable positioning of scanner through step-by-step guided process
Fast creation and calibration of probes
Acquisition of geometrical entities
Direct measurement of CAD entities by probing
Alignment by 3 geometrical entities or with “plane, line, point”
Possible exportation of measured entities in IGES format.
Automatic report generation
3D Scanning with Zenith

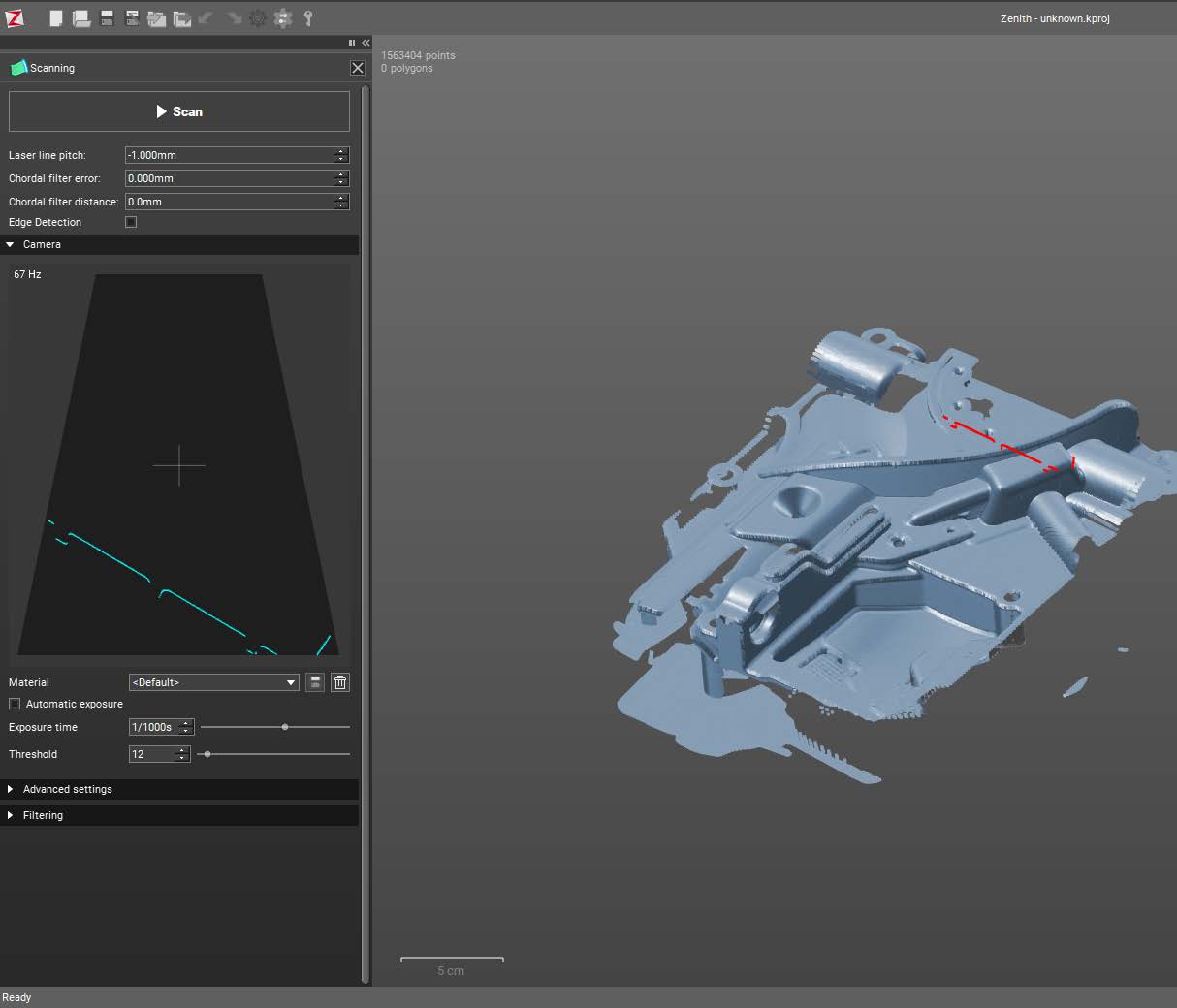

Fast Point Cloud Acquisition
- Manage large point clouds without software slow-down.
- Filter point clouds to reduce files weight.
- Select and remove quickly unwanted point cloud zones.
CAD Comparison

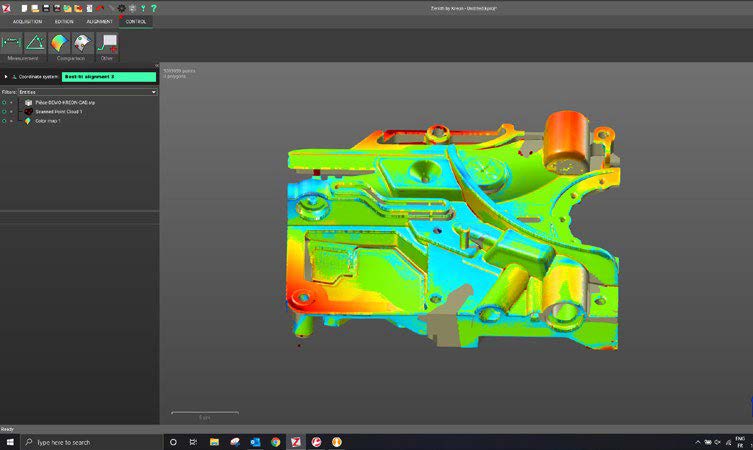

- Color mapping – After aligning the scan to the CAD model with a Landmark and a Best-fit alignment, a color mapping can be generated on the point cloud.

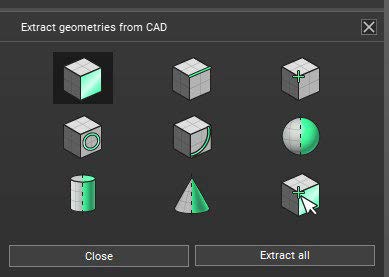

- Extraction from CAD – Extract geometrical entities from CAD and compare them to measured data from point cloud.

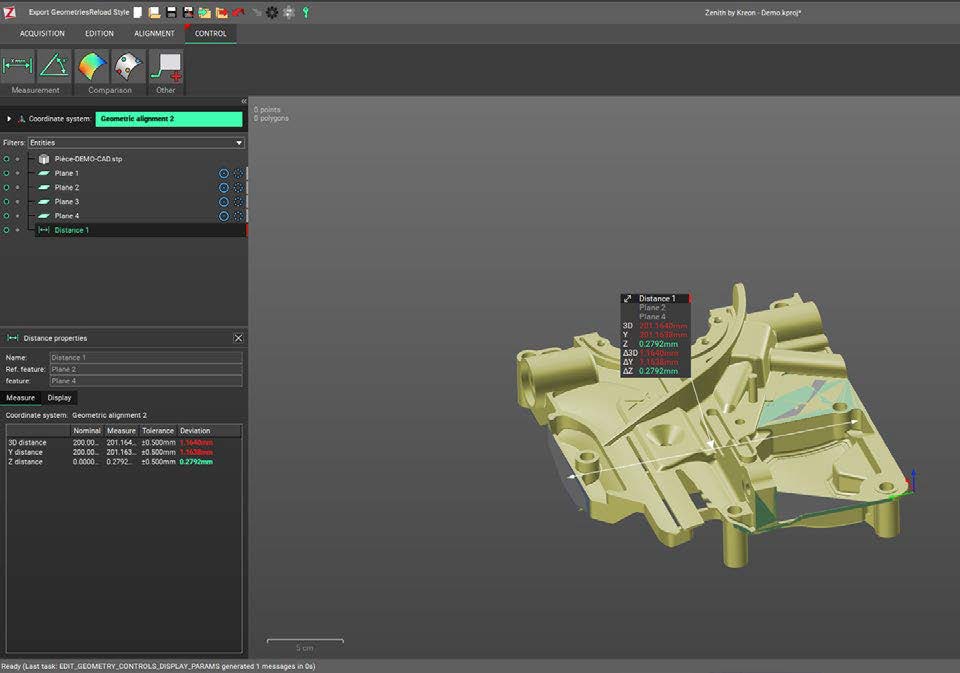

Geometric acquisition
- Fast creation and calibration of probes
- Acquisition of geometrical entities
- Direct measurement of CAD entities by probing
- Alignment by 3 geometrical entities or with “plane, line, point”
- Possible exportation of measured entities in IGES format.
Automatic report generation
Automatic report generation in three easy steps
- – Specify entities and properties visibility
- – Organize the tree view to define the report tables order
- – Generate the report and export it as PDF or CSV.
