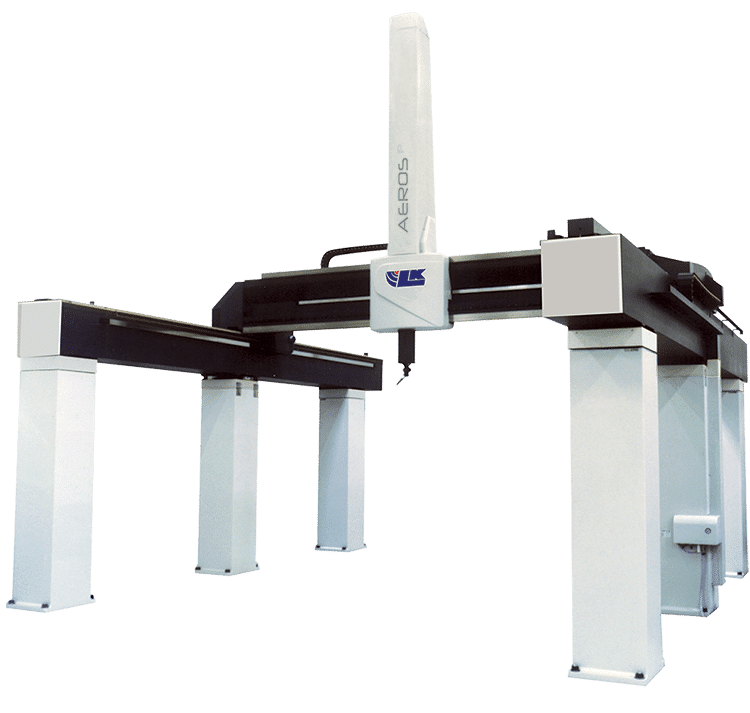

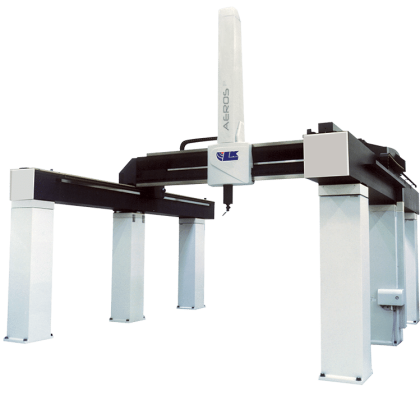

AEROS P Gantry CMM
Product Overview
The AEROS P Series consists of large gantry coordinate measuring machines for industrial metrology applications particularly in the aerospace, strategic and energy segments. The specific build strategy of the structure, “Dual Drive” motion and “Dual Read” positioning system on the X-axis beams limit structural deformations during movement, guaranteeing the achievement of excellent metrological performance. The AEROS P gantry systems are also very appreciated for the inspection of large geometrically accurate components, such as marine engines and transmissions, large transportation vehicles, as well as large parts and tools characterized by free-form and sculptured surfaces.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the AEROS S Series CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Key Benefits
Generous dimensioning of the distance between the air bearings for optimal mechanical rigidity
X and Y axes rack & pinion drive system for accurate and efficient movement of the main axes
Wide cross section X-axes beams built of stabilized steel and equipped with a dedicated support system that allows for linear expansion without any induced stress nor deformation
Measurement system with high resolution linear transducers (0.1µm)
“Dual Read” positioning and “Dual Drive” motion systems on longitudinal X-axis
Multi-sensor system for automatic compensation of errors due to thermal expansion of structural components.
Technical Specifications
The AEROS P CMM Series is available in 11 standard models with the following YZ-axes sections: 25.20 / 30.20 / 30.25 / 35.25
Accuracy (µm): from 7.0+8.0L/1000
Max. 3D Speed: from 530 mm/sec
Max. 3D Acceleration: from 800 mm/sec*
Industrial Applications
LK Metrology AEROS S series CMMs are ideal for a range of industrial applications.
Marine Equipment
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer LK Metrology in the following areas:
Videos
More information From LK Metrology
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
