AEROS S Gantry CMM
Product Overview

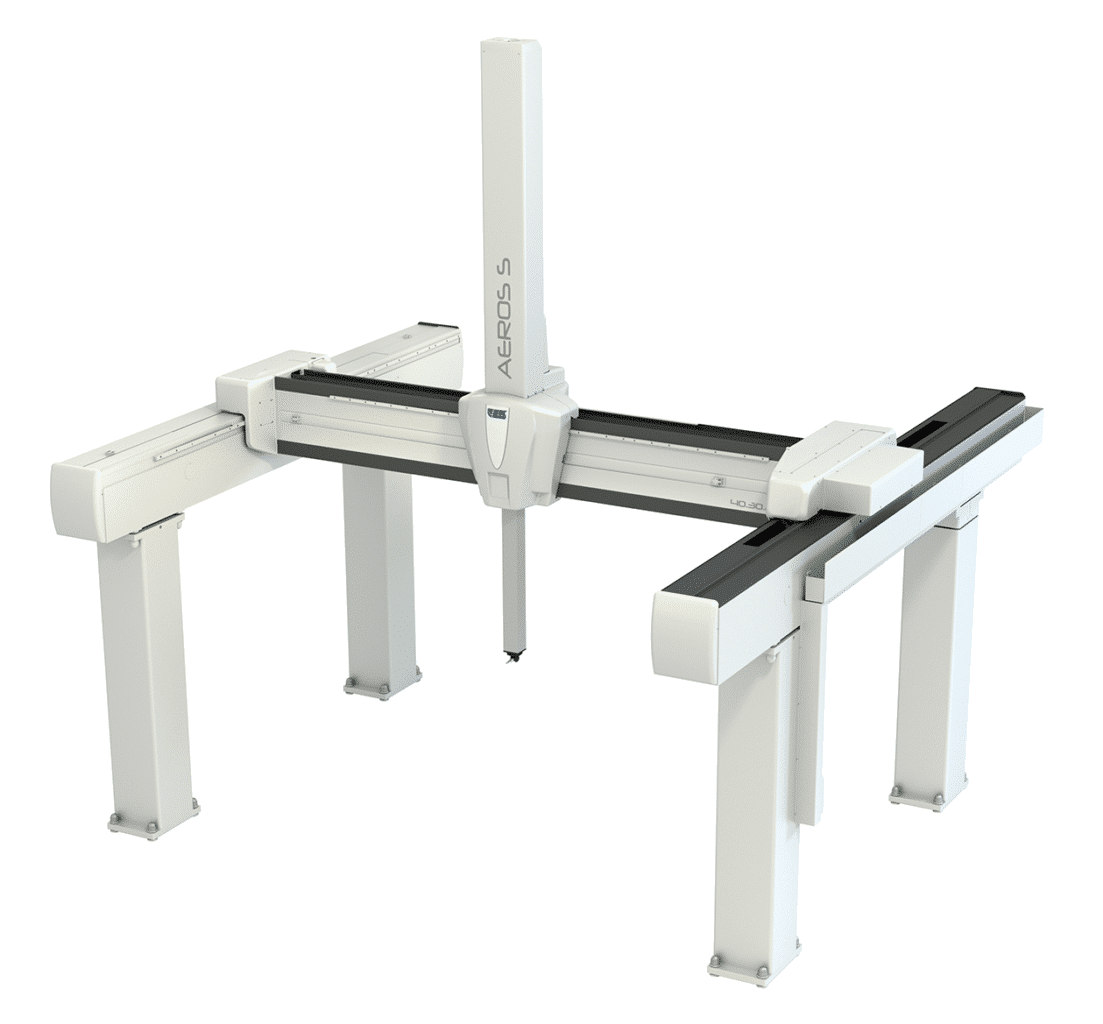

The AEROS S Series offers medium to large Gantry CMM that are well appreciated for their excellent structural stability and adaptability. They can be configured according to the requirements of any measurement application and are available in a wide range of sizes. AEROS S is a design equipped with a light aluminum alloy Z-axis spindle and a “Single Read” scale system on the X-axis.
As a distributor for LK Metrology in the U.S. the precision measurement group at Cross Company offers the AEROS S Series CMM throughout our territories and our sales teams can work with your team to determine the best LK Metrology solution for your process. Learn more and schedule a demonstration today!
Key Benefits
Generous dimensioning of the distance between the air bearings for optimal mechanical rigidity
High rigidity Y-axis cross-beam with proprietary steel tubular frame design
Z-spindle in extruded aluminum alloy guarantees rigidity and minimizes the moment of inertia
X-axis beams with wide transverse section made of stabilized steel and equipped with a support system that allows for linear expansion without any induced deformations
X / Y axes guideways finished with finely ground (0.4mm roughness) high resistance epoxide resin
“Dual Reader” Measurement system with high resolution linear transducers (0.1µm) on longitudinal X-axis
“Dual Drive” system on longitudinal X-axis (optional up to Y=2500, standard for Y=3000)
Multi-sensor system for automatic compensation of errors due to thermal expansion of structural components.
Technical Specifications
The AEROS S CMM Series is available in 40 standard models with the following YZ-axes sections: 15.13 / 20.13 / 20.15 / 20.20 / 25. 15 / 25.18 / 25.20 / 30.20 / 30.25
Accuracy (µm): from 4.3+4.0L/1000
Max. 3D Speed: from 500 mm/sec
Max. 3D Acceleration: from 800 mm/sec*
Max. 3D Acceleration: from 500 mm/sec*
Industrial Applications
LK Metrology AEROS S series CMMs are ideal for a range of industrial applications.
Marine Equipment
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer LK Metrology in the following areas:
Videos
More information From LK Metrology
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
