TouchDMIS CMM Software
Product Overview
TouchDMIS software is designed to provide full CAD compatibility, complex sensor support, and high level productivity at the touch of a screen. Intuitive enough for use in the production area and flexible enough for use in the Quality Lab, TouchDMIS is a great choice for many applications and CMM configurations.
Thanks to its pure DMIS roots, TouchDMIS also lends itself for customers looking to get into automated metrology for the first time with a path for growth. By utilizing the DMIS language, users can move to the more powerful and advance CAMIO platform without sacrificing routines.
Contact our team to discuss your needs to see if TouchDMIS is the best platform for you.
Key Features

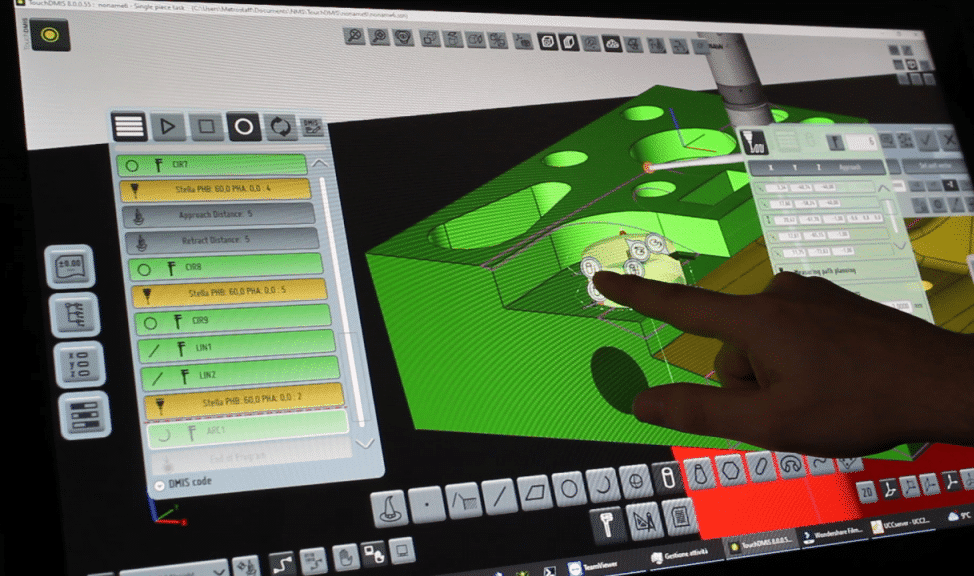

Full Touch Interface
TouchDMIS supports the touch-screen interface, allowing users to use the software in fully touch mode.
The TouchDMIS user interface is designed to be intuitive and easy to use, providing large, easily selectable icons and common touch gestures such as swipe and pinch-to-zoom.

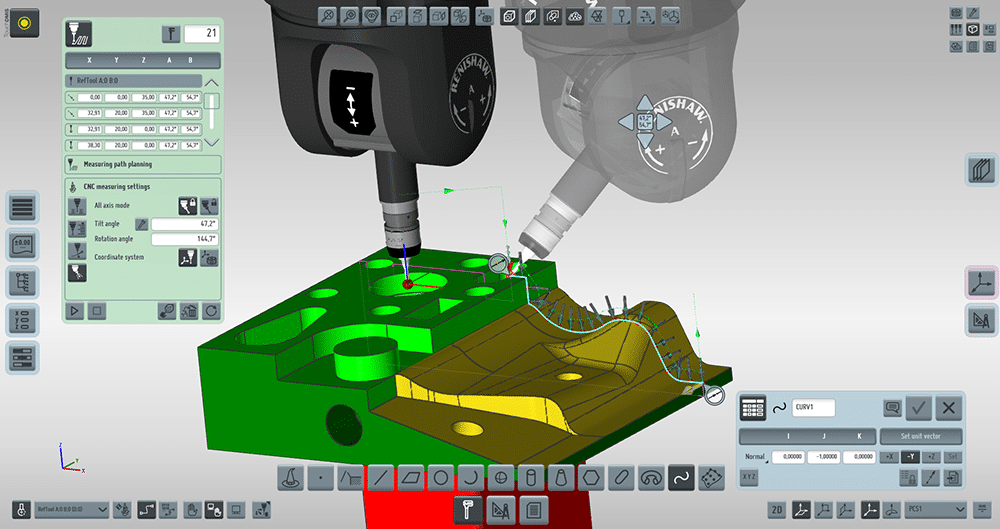

PH20 Full Support
Get the full potential of the PH20 5-Axis touch trigger system. The PH20 head allows for the measurement of large and complex parts with high accuracy, and can be used for a variety of applications, including automotive, aerospace, and medical industries.

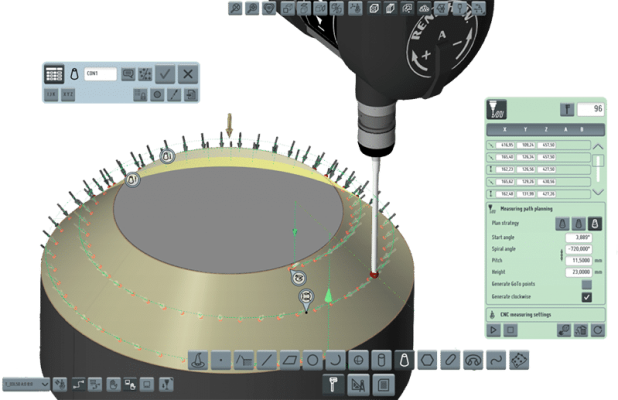

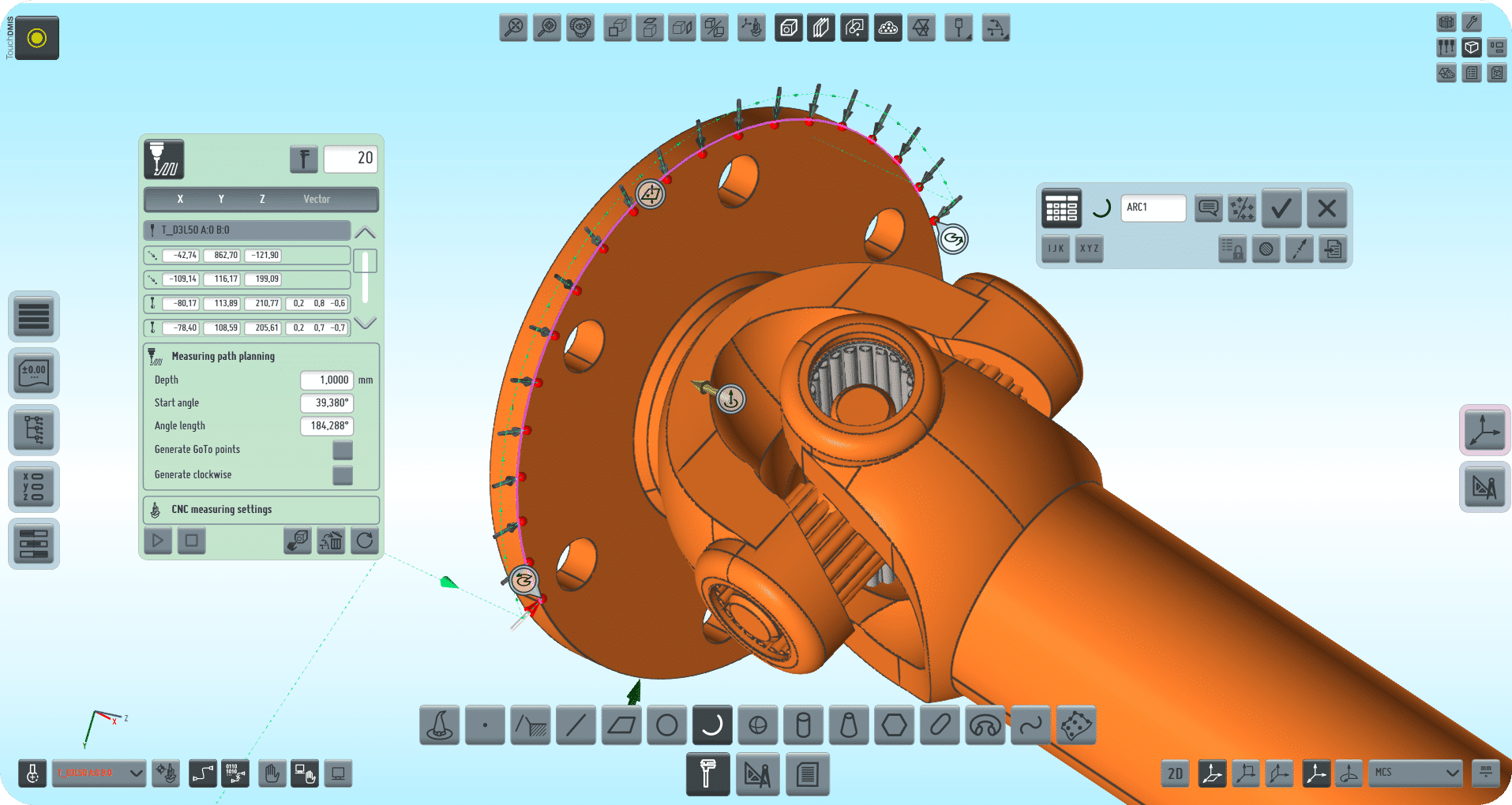

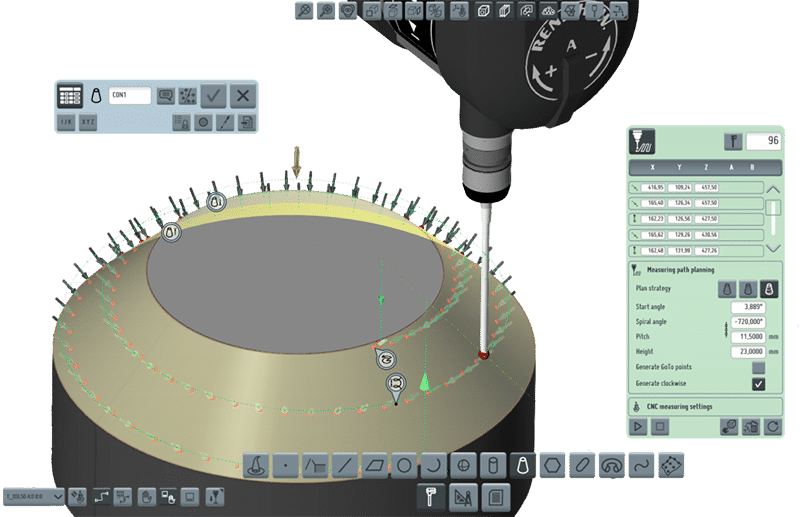

Auto-generated Measuring Path
Inspections have never been easier with TouchDMIS. Simply select the feature you want to measure and TouchDMIS will automatically calculate the best measuring path. Once picked a feature, the measuring path window will show you all the possible strategies, including circular plan, zig-zag, edge plan.

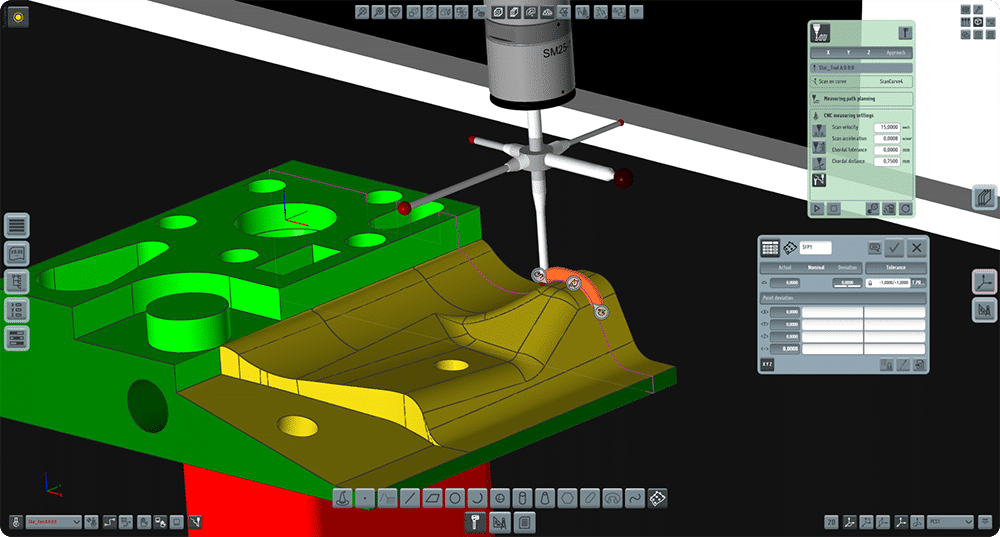

Continuous Scanning
TouchDMIS supports continuous scanning with SP25 or SP80 using UCC Server on Renishaw controllers equipped with scanning capability. By selecting the SP25 or SP80 from the tools list you can simply tap on the feature and set the scanning parameters.

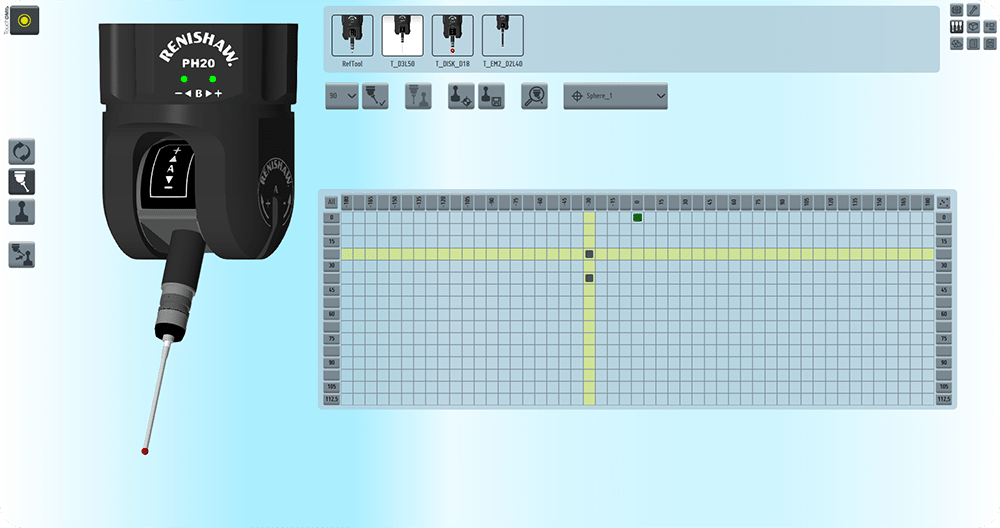

Touch Probe Manager
The intuitive and easy-friendly Touch Probe Manager of TouchDMIS allows you to configure and calibrate your probes quickly just with a touch of your finger! Touch Probe Manager supports the following measuring heads and probes: SP25, SP80, PH20, TP20, TP200, TP2, TP6, PH10M, PH10T
Industrial Applications
TouchDMIS software is ideal for a range of industrial applications.
Marine Equipment
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer LK Metrology in the following areas:
