MarSurf M 410 Portable Surface Measuring Instrument
Product Overview
Unparalleled Precision and Mobility for Measuring Surface Roughness

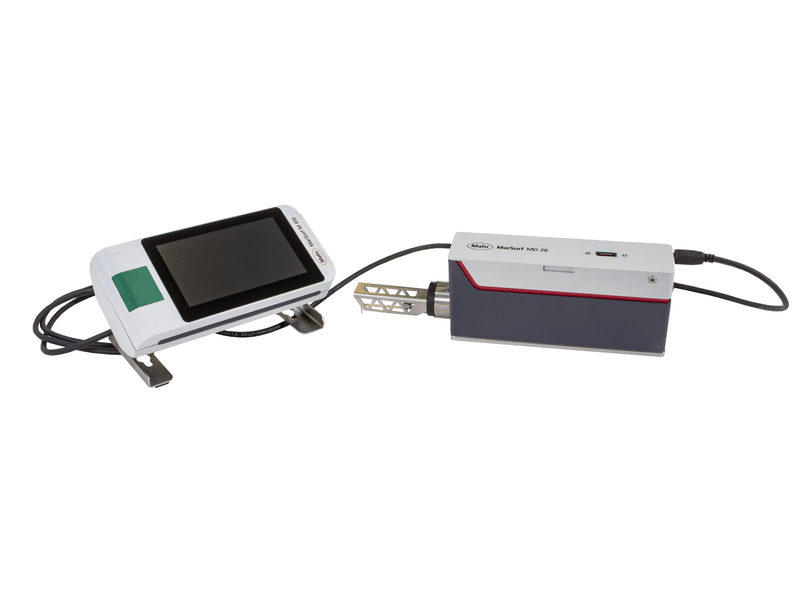

The MarSurf M 410 is a portable surface measuring instrument and one of the leading mobile devices for surface evaluations. When it comes to roughness metrology, ease of use is often a major consideration. The MarSurf M 410 provides simple and intuitive operation (as easy as operating a smartphone) as well as direct printing, data backup, and the ability to add customer-specific comments.
Many of the new features of the M 410 were previously only available in PC-based systems, limiting some use-cases. But with the expanded capabilities of this mobile surface measurement instrument, it can provide high-precision, accurate reading for surface roughness measurements on either small or large workpieces.
With a stylus touch display, integrated PDF memory, and Bluetooth data transmission, the MarSurf M 410 streamlines precision surface measurement without having to sacrifice accuracy. If this sounds like a product that would benefit your operation, contact Cross Company today to learn more.
Features and Benefits
Take a look at the features and benefits of the MarSurf M 410
Large, illuminated 4.3″ TFT touch display
Unique touch arm management and modular design
55 parameters
Automatic cutoff selection: ensures correct measurement results even for the non-measuring technician

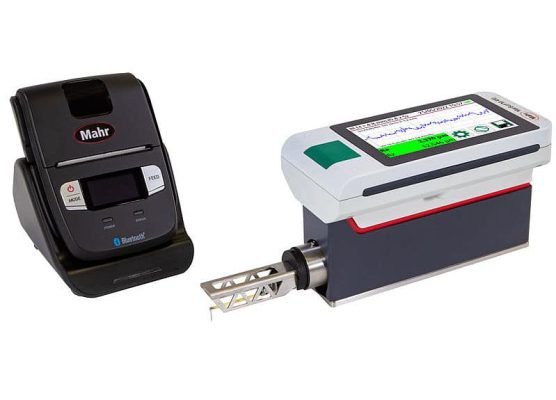

Direct printing on the mobile printer (as an option or directly in the set with printer)
Data backup as TXT, X3P, CSV and PDF file
Display and print MRK and ADK curves
Save more than 30000 measuring programs
Micro-USB interface for remote control via ASCII commands, e.g. via statistical process control software
USB-A interface for connection of e.g. a USB Bluetooth adapter or USB/Bluetooth printer
Transmission of measurement protocols and data optionally via Bluetooth or cable
IATF 16949 compliant – secure traceability with MarConnect
Specifications
Measuring speed
0.1 mm/s; 0.5 mm/s; 1.0 mm/s
Positioning speed
3 mm/s
Dimensions in mm
198 mm x 77 mm x 97 mm
Measuring force (N)
0.00075
Filter according to ISO/JIS
Gaussian filter according to DIN EN ISO 16610-21, robust Gaussian filter according to DIN EN ISO 16610-31, special filter according to DIN EN ISO 13565-1, ls filter according to DIN EN ISO 3274 (can be switched off)
Cutoff Ic according to ISO/JIS
0,08 mm , 0,25 mm , 0,8 mm , 2,5 mm , automatic filter detection , variable
Number n of sampling length according to ISO/JIS
Selectable: 1 to 16
Data interface
USB A , MarConnect (RS-232) , Micro SD slot for SD / SDHC cards up to 32 GB
Parameters
Ra , Rq , Rz , Rz (JIS) , Rz (Ry (JIS) is equivalent to Rz) , Rmax , Rp , Rp (ASME) , Rpm (ASME) , Rv , R3z , Rk , Rpk , Rvk , Mr1 , Mr2 , A1 , A2 , Vo , Rt , RPc , Rmr (tp (JIS, ASME) is equivalent to Rmr) , RSm , RS , Rdq , RSk , Rku , Rdc , RHtp , Pdc , Pa , Pt , PMr , Wa , Wq , WSm , WSk , Wt , CR , CF , CL , R , Ar , Rx , W , AW (MOTIF) , Wx (MOTIF) , Wte (MOTIF) , NW (MOTIF) , NR (MOTIF) , NCRX (MOTIF) , CPM (MOTIF)
System of protection
IP 40
Parameters
Ra , Rq , Rz (Ry (JIS) is equivalent to Rz) , Rz (JIS) , Rmax , Rp , RpA (ASME) , Rpm (ASME) , Rpk , Rk , Rvk , Mr1 , Mr2 , A1 , A2 , Vo , Rt , RPc , Rmr (tp (JIS, ASME) is equivalent to Rmr) , RSm , RSk , RS , CR , CF , CL , R , Ar , Rx , R3z
Measuring range
mm 500 μm (±250 µm) for probe arm length 45 mm to 1500 µm (±750 µm) for probe arm length 135 mm
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer Mahr in the following areas:
