Meinecke MeiStream Cold Water Meters
Product Overview
Special Features
Applications
Industries
Options
Special Features
- No Straight Pipe Requirements
- High Overload Capacity
- Can be mounted Horizontally or Vertically
(Vertical Flow-Up only) - Meter is submersible, Protection Class IP68
- Register Prepared for HRI-MEI Pick Up
- Also designed for use with Optical Pulsers
- Enamel Powder Coating provides maximum corrosion protection
- Not affected by external magnetic fields
Applications
- Mechanical Tubine Flow Meters for bulk measurement of cold water up to 122°F/50°C
- Line Sizes: 1-1/2″, 2″, 3″, 4″, 6″, 8″, 10″ and 12″
Industries
- Power Generation
- Concrete, Process
- Waste Water
- Process Water
- Pharmaceutical
- Pulp & Paper
- Chemical,
- Public Utilities and Agriculture
Options
- Connections: ANSI 150lb RF Flanges
- Registration: Non-Resettable Mechanical Register reading in US Gallons or Cubic Meters (allow 6-8 weeks)
- Output: HRI-MEI or Opto “OD” Style Pulsers
- Ports: Available 1/4″ Connection Port for Pressure Sensor (Special Order Only)
Installation Guidelines
- Unrestricted straight pipe runs upstream of the meter (0 x Pipe Diameter).
- Do not place abrpt restrictions downstream of the meter.
General Installation Requirements
- These meters are designed with an integral flow straightener and as such, do not require any straight pipe lengths in front or behind the meter.
- The Pipe Diameter should not be abruptly reduced or expanded in front of or behind the meter.
- No abrupt restrictions should be placed directly in front of or behind the meter.
- All regulation of the flow (valves, etc.) should be done downstream of the meter.
- The meter must be fully supported and installed in pipe free of stress.
- The location of the meter should be such that it is not possible for air pockets to develop in the meter; For instance, the meter should not be located at high points in the pipeline and/or operated under half full pip conditions.

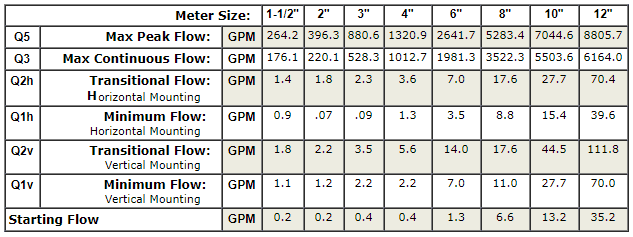

Performance Data

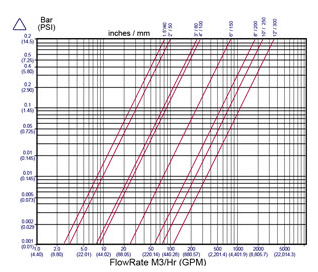

Typical Head Lost Curve

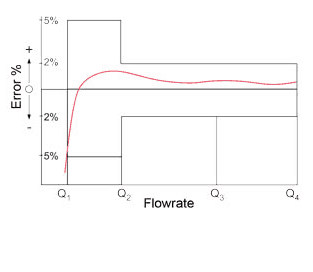

Typical Accuracy Curve

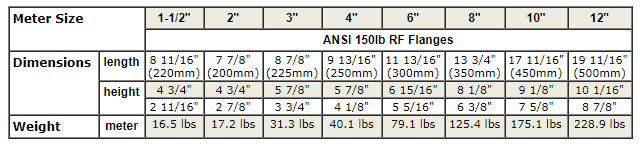

Dimensions, Weight, and Materials
Dimension Picture

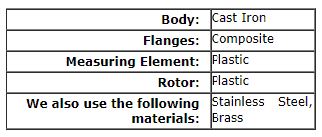

Materials of Construction

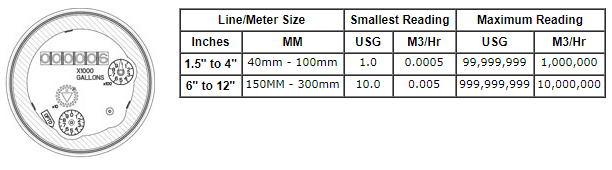

Dial Specifications

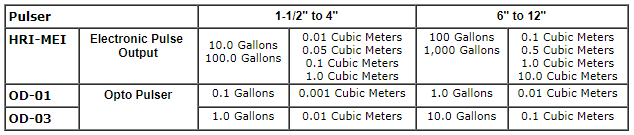

Pulse Values

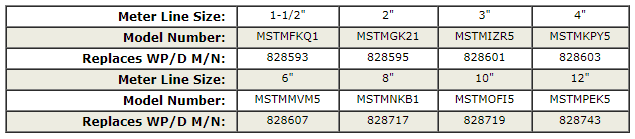

Available Designs
Interested in getting a quote for a MeiStream Cold Water Meters? Our team of experts have worked with customers in a wide range of process applications across multiple industries. With such a variety of options available, finding the right solution is important. We can work with your team to determine the best Meinecke product for your operation. Start a conversation with a Cross expert today!
