Ai810 Automated 3D Scanner
Product Overview

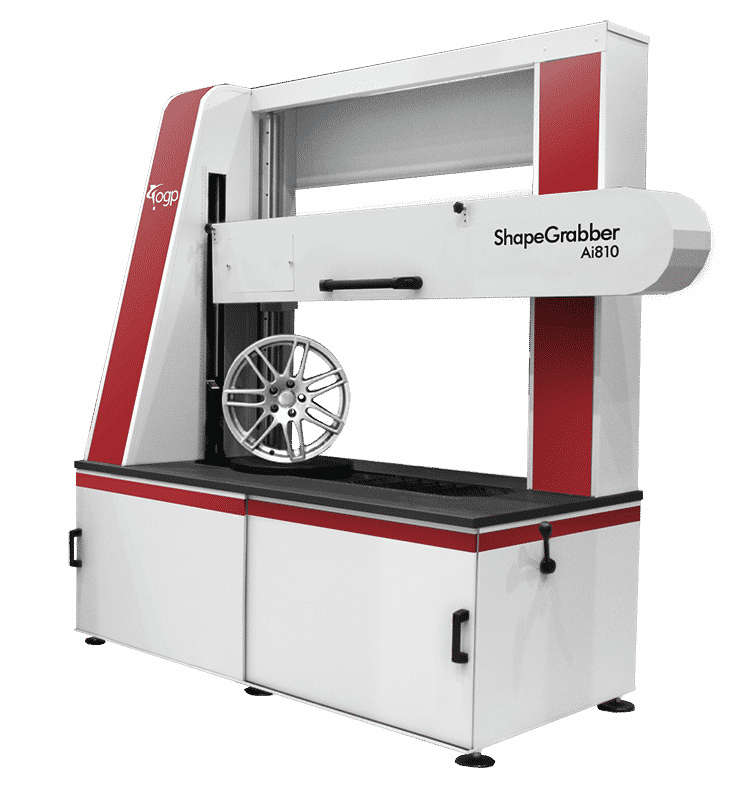

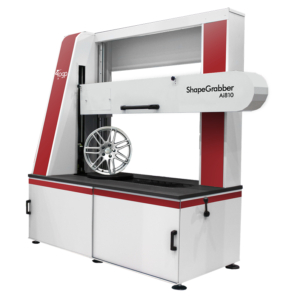

The ShapeGrabber Ai810 3D scanner is ideal for quickly scanning parts that vary in size and shape. With the Ai810 automated laser scanner, Cross customers can reduce inspection time and greatly enhance the dimensional measurement coverage for parts. This leads to an increase in overall customer satisfaction by not only catching and reducing defects, but also providing proof that product specs are met.
The rapid inspection scans with Ai810 improve process efficiency while reducing production downtime, human inspection error, and even material waste. These fast, accurate 3D scanners help your QC team improve product quality and compliance without slowing down production. ShapeGrabber automated scanners provide:
- Ease of use – no need to write special code to scan each object
- Speed – fast and simple to scan a part without complicated, time consuming orientation and alignment processes
- Efficiency – significantly reduce the time required to completely scan a shape, reducing the cost associated with executing the job
Features and Benefits:
- Reduce operator inspection time by up to 95% (when compared with a CMM inspection)
- Integrates the acquisition, auto alignment and inspection process
- Offers GD&T reports
- Provides full 3D quality control
- Includes Go/No Go capability
- Compatible with a wide variety of materials and colors
- Works in all normal lighting conditions
- Creates digital inspection reports that can be saved and shared
Specifications
- Overall Equipment Size and Footprint:
- Length: 191 cm or (6’3″)
- Depth: 92 cm or (36″)
- Height: 221 cm or (7’3″)
- Total Weight: 1600 lbs, 726 kg.
- Electrical Requirements: 120 or 220 VAC, 50/60 Hz
- Laser: CDRH Class II / IEC Class 2M
- Vertical Rail Motion: 800 mm or (30 in)
- Horizontal Rail Motion: 1250 mm or (48 in)
- High precision rotary table automatically reorients the part being scanned through 360 degrees
- Capture anywhere from 18,000 to 350,000+ points/sec
- Scan Volume: Depends on the scanhead configuration. See table below:
| ShapeGrabber Ai810 Scan Volume | ||||
| Scan Volume (Automated Mode) Cylinder Height x Diameter | Scan Volume (Single-Scan Mode) Length x Width x Depth | |||
| Scanhead(s) | Millimeters | Inches | Millimeters | Inches |
| SG46 | 800 x 50 | 30 x 2 | 1250 x 40 x 50 | 48 x 1.75 x 2 |
| SG156 | 800 x 190 | 12 x 7.5 | 1250 x 175 x 190 | 48 x 7 x 7.5 |
| SG356 | 800 x 400 | 30 x 16 | 1250 x 345 x 400 | 48 x 13.5 x 16 |
| SG1002 | 800 x 800 | 30 x 30 | 1250 x 600 x 800 | 48 x 24 x 30 |
Technical Resources
As a distributor for OGP and ShapeGrabber, Cross offers Ai810 automated 3D scanner systems throughout all of our sales territories. Our technical sales team offers local one on one customized product demonstrations which help determine your specific needs and ensure you have the best solution for your operation. For more information about the ShapeGrabber products we offer, to set up a local demonstration, or to get a quote for new equipment, fill out our form to discuss your needs with a Cross team member today!
