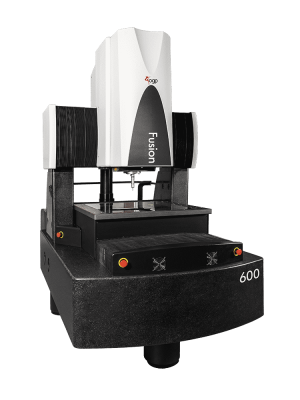

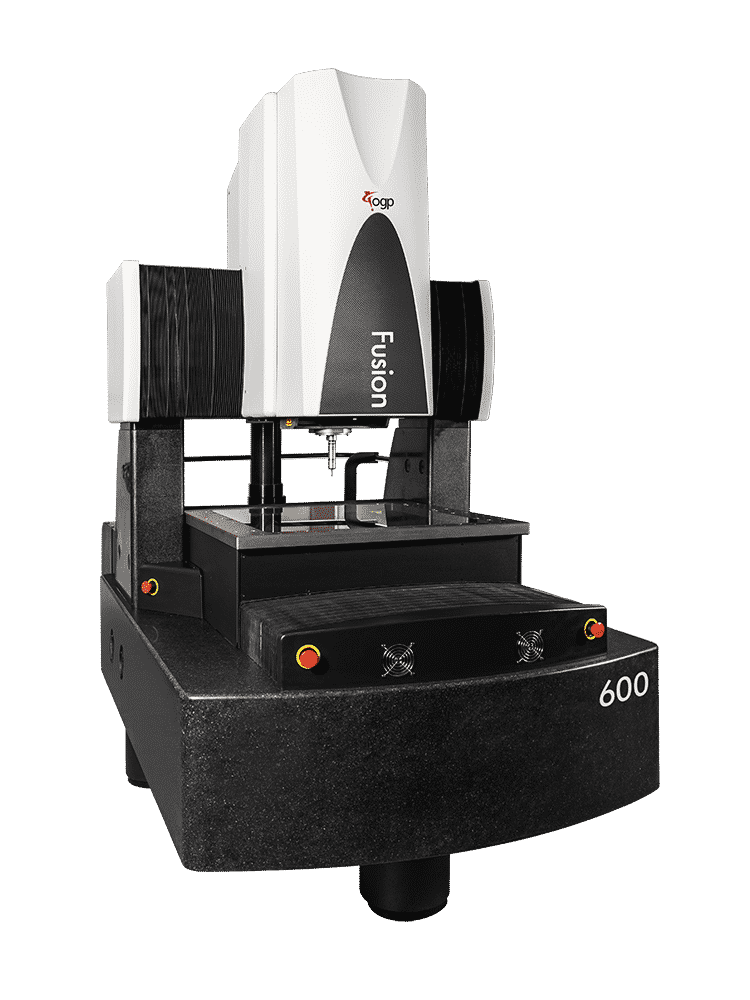

OGP Fusion 600 Large Field-of-View Multisensor Metrology System
Product Overview
The OGP Fusion 600 offers an advanced 3D multisensor solution for measuring large, intricate components with precision and efficiency. Featuring an expansive field of view and the flexibility of video and optional probe sensors, the Fusion 600 excels in high-throughput environments where accuracy and productivity are essential. With Cross Company’s metrology expertise and dedication to quality support, we’re the ideal partner to help you integrate the Fusion 600 into your process, maximizing inspection efficiency for industries such as aerospace, automotive, and electronics. Reach out to a local Cross Company team member today to learn more about the Fusion 600 and how it can raise efficiency in your inspection process.
Features and Benefits
Expansive Field of View: Enables large-scale measurements with minimal repositioning, enhancing throughput.
Multisensor Flexibility: Integrates video and optional probe sensors for adaptable and comprehensive measurement options.
High-Throughput Efficiency: Ideal for demanding applications that require rapid and precise measurements.
Precision and Stability: Constructed with a stable platform to ensure consistent, high-accuracy results.
Streamlined Process Integration: Simplifies inspection workflows, boosting productivity and consistency.
User-Friendly Operation: Designed for ease of use, reducing setup time and increasing inspection efficiency.
Specifications
Standard XYZ Travel:
- 350 x 250 x 250 mm
Optics:
- Telecentric, dual optical magnification with 100 mm low mag and 20 mm high mag field of view
Illumination:
- Profile: Collimated, full field, LED
- Surface: Square-on internal
- Oblique Surface: Oblique ring light with 8 programmable segments
Tactile Sensors:
- Scanning Probe
Laser Sensors:
- Rainbow Probe
- TeleStar Plus Through-the-lense (TTL) laser
Accessories:
- Rotary Indexers
Available In The Following Areas
With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer OGP in the following areas:
Downloads
Videos
More information From OGP
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
