SmartScope Flash 1500
Product Overview

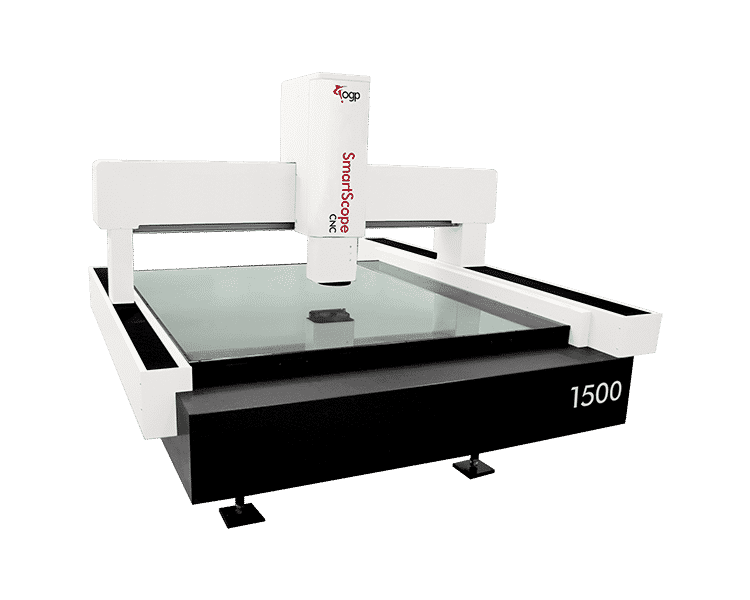

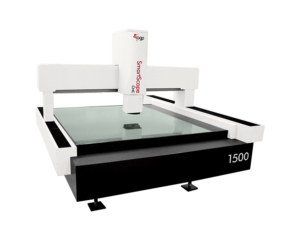

The SmartScope® Flash™ 1500 is a floor model dimensional measurement machine. The instrument head in this system moves in the X axis across a steel bridge while the entire bridge moves on parallel tracks in the Y axis. The large measurement range of the SmartScope Flash 1500 accommodates large parts, such as LCDs, plasma displays, circuit boards, and multi-component fixtures. This makes it an ideal dimensional measuring solution for operations in many industries.
As with other dimensional measurement systems in this series, the SmartScope Flash 1500 is multisensor capable and comes standard with a high quality zoom 12 AccuCentric® zoom lens that autocalibrates with every magnification change. Whether your operation needs multisensor capabilities now or in the future, SmartScope Flash 1500 is up to the task. Its advanced design allows the additional precision of multiple sensors, including touch trigger probes, micro-probes, and laser scanners.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Flash systems throughout our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a local team member today.
Features and Benefits:
- Open work area – Optics mounted on a moving bridge — part remains stationary and easily accessible
- Precision optics – High quality Zoom 12 AccuCentric® zoom lens auto-compensates with every magnification change
- Exclusive illumination to measure the most challenging parts – Substage, TTL, and SmartRing™ light illuminate parts from all angles
- Multisensor versatility – Optional non-contact sensors and touch probes
Specifications
| SmartScope Flash 1500 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 900 | 35.43 |
| Y Axis | 1500 | 59.05 |
| Z Axis | 200 | 7.87 |
- Area Accuracy: (4.5 + 8L/1000) µm
- Z Accuracy: Up to (3.0 + 8L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 1625 mm (63.97 in)
- Max Width: 1680 mm (66.14 in)
- Max Depth: 2290 mm (90.15 in)
- Weight: 2590 Kg (5709.97 lbs)
- Power Requirements: 100-120 or 200-240 VAC, 50/60 Hz, 1 phase, 700 W
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor, Measure-X®, VMS™, Elements®
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
