SmartScope Flash 670
Product Overview

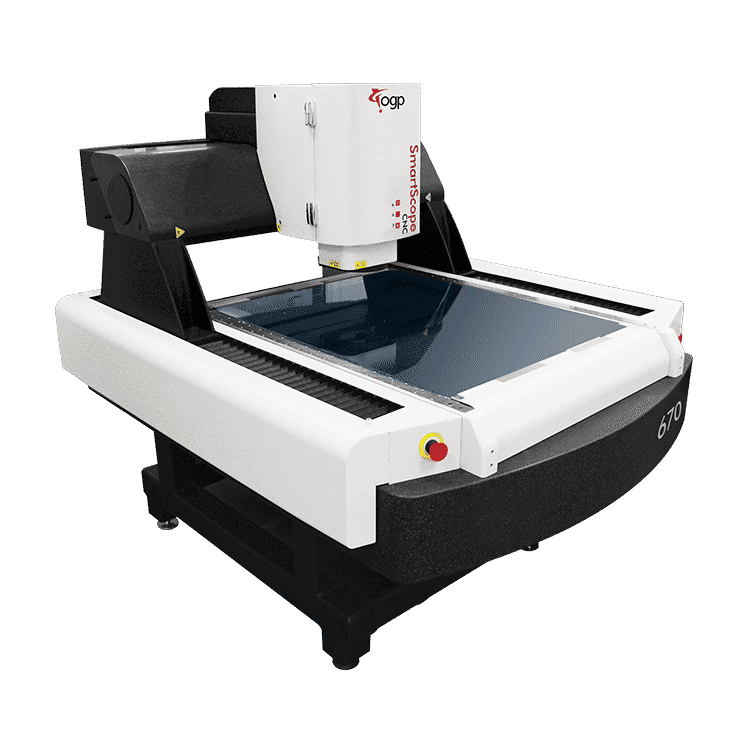

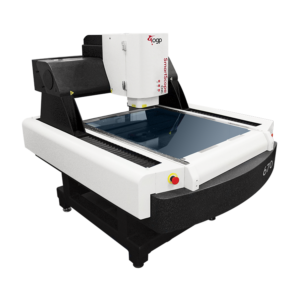

The SmartScope Flash 670 is an innovative multi-purpose measurement system with a large XYZ measuring range. This is a moving bridge machine where the instrument head moves in the X-axis across a granite bridge while the bridge moves in parallel tracks in the Y-axis. Its granite bridge provides excellent metrological stability across the entire X-axis, while dual Y-axis scales assure high accuracy and repeatability.
As with other dimensional measurement systems in this series, the SmartScope Flash 670 is multisensor capable and comes standard with a high quality Zoom 12 AccuCentric® zoom lens that autocalibrates with every magnification change. Whether your operation needs multisensor capabilities now or in the future, SmartScope Flash 670 is up to the task. Its advanced design allows the additional precision of multiple sensors, including touch trigger probes, micro-probes, and laser scanners.
As a distributor for OGP, our precision measurement group offers the full line of SmartScope Flash systems throughout our sales territories in the U.S. For more information about the OGP products we offer, or to get a quote for new equipment, contact a a loval team member today.
Features and Benefits:
- Stationary part – Optics mounted on a moving bridge, so part remains stationary for easy access
- Precision optics – High quality Zoom 12 AccuCentric® zoom lens auto-compensates with every magnification change
- Exclusive illumination to measure the most challenging parts – Substage, TTL, and SmartRing™ light illuminate parts from all angles
- Multisensor versatility – Optional non-contact sensors and touch probes
Specifications
| SmartScope Flash 670 Measuring Ranges/Travel | ||
| mm | in | |
| X Axis | 650 | 25.59 |
| Y Axis | 660 | 25.98 |
| Z Axis | 200 | 7.87 |
| Extended Z (Optional) | 300 | 11.81 |
| Extended Z (Optional) | 400 | 15.78 |
- Area Accuracy: (2.0 + 5L/1000) µm
- Volumetric Accuracy: (3.5 + 8L/1000) µm
- Z Accuracy: Up to (3.0 + 8L/1000) µm
- Overall Equipment Size and Footprint
- Max Height: 1550 mm (61.02 in)
- Max Height (With Optional 300 mm Z): 1760 mm (69.29 in)
- Max Height (With Optional 400 mm Z): 2160 mm (85.03 in)
- Max Width: 1560 mm (61.41 in)
- Max Depth: 1830 mm (72.04 in)
- Weight: 1800 Kg (3968.32 lbs)
- Power Requirements: 115/230 VAC, 50/60 Hz, 1 phase, 850 W
- Software Options:
- Metrology Software: ZONE3® or ZONE3 Pro, MeasureMind® 3D MultiSensor, Measure-X®, VMS™, Elements®
- Productivity Software: MeasureFit® Plus, SmartFit® 3D, SmartProfile®
- Offline Software: ZONE3, MeasureMind 3D MultiSensor, Measure-X, VMS
