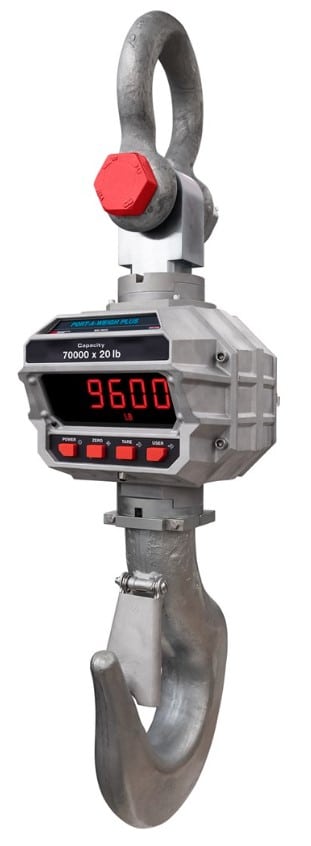

MSI-9600HT Hi-Torque Port-A-Weigh Plus

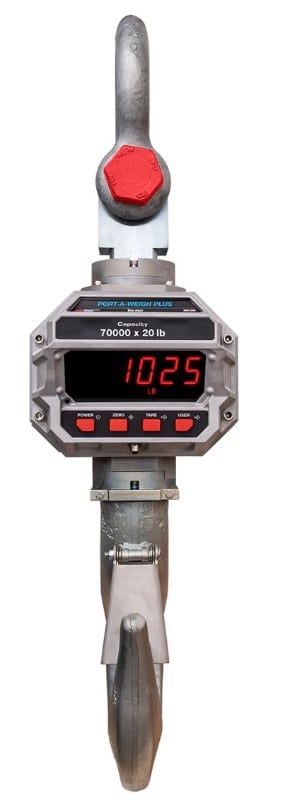

Port-A-Weigh Plus Crane Scale
The MSI-9600HT Hi-Torque Port-A-Weigh Plus crane scale, equipped with advanced ScaleCore technology, offers models with capacities reaching up to 200,000 pounds, ensuring precise weight measurements with an accuracy of +/- 0.2%. Engineered with a distinctive configuration tailored for heavy-duty coil handling and other applications, it can handle loads up to 100 tons, featuring a fixed hook designed for seamless integration with crane hooks equipped with powered rotation, especially under high torque conditions.
Constructed with a durable IP66 marine-grade alloy anodized aluminum enclosure, the MSI-9600HT boasts a rear-battery casting with a snap-closure mechanism, guaranteeing weatherproof protection. Its vibrant, extra-large LED display with six-digit readability ensures clear visibility in varying light conditions, with the option to customize display colors to indicate nearing overload conditions using internal setpoints. With safety at the forefront, the MSI-9600HT meets or exceeds all industrial safety standards, offering a 200% Safe and 500% Ultimate Safety Factor to mitigate the risk of overloading accidents.
Designed for reliability and longevity, the MSI-9600HT boasts an impressive battery life of up to 250 hours, ensuring consistent performance between charges and minimizing the occurrence of overload accidents.
Features and Benefits
Multi-color LED display
12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
Hi-torque load train designed for use with powered rotation
Rugged Remote (control for on/off, zero, tare and other functions) (optional)
Anti-heat shielding for high-temperature applications (optional)
Oversized bottom hooks, top, or shackle (optional)
Custom top and bottom interfaces
Audible alarm
Specifications
Accuracy:
10,000 to 120,000 lb: ± (0.1% +1 d) of capacity
200,000 lb: ± (0.2% +1 d) of capacity
Operating Time:
Up to 30 hours between charging with typical use
Resolution:
3,000 to 5,000 d standard (Up to 10,000 d available)
Temperature Range:
Operating: 14 °F to 131 °F (-10 °C to 55 °C)
Display:
1.5″ (38 mm, 6-digit, programmable LED display, multi-color (red, orange, and green)
Filtering:
OFF, LO, HI-1 or HI-2 selectable
Design Overload:
200% Safe / 500% Ultimate (except where noted)
Power:
12 Volt rechargeable battery, 115/230 VAC battery charger included
Radio Link Effective Range:
Typically 100 to 300 ft line of sight
Functions:
Power: Turns unit on or off
Zero: Zeros applied load up to 100% of capacity
Tare: Tares applied load and displays weight in net
Mode F1: Programmable as test, units, net/gross, total and peak hold
Applications
Heavy Manufacturing
Construction Sites
Shipping and Logistics
Mining Operations
Oil and Gas Industry
Aerospace and Defense
Automotive Manufacturing
Recycling Facilities
Agricultural Applications
