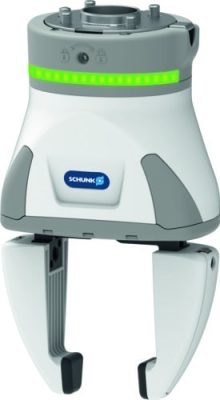

SCHUNK EGH Collaborative Gripper

Product Overview

The SCHUNK EGH is a flexible gripper built for moving small to medium sized work pieces in applications such as pick and place, part assembly, and machine tending. With plug and play capability paired with a range of components, the EGH is an ideal choice for teams that are new to automation as well as teams that are looking for simplicity and quick implementation.

The Co-act starter kit, available from Cross, includes a USB which plugs into the UR pendant, allowing for setup in as little as 30 minutes.

As distributors, our experts have experience working with top of the line gripping and clamping systems and can work with your team to implement the EGH into your operation. Take a look at some of the key benefits and other resources available for the EGH and request a demonstration or a quote today!

Request a Quote

Features and Benefits

Long and freely programmable stroke

Ideal for flexible workpiece handling

Plug & Work

For a quick and simple start of production

Integrated status display

For a visual indicator of the application state

Control via IO-Link

Enable the prepositioning of the gripper finger and the evaluation of the gripper condition

Gripping movement with parallel kinematics

Maintain constant gripping force over the entire stroke

Easily accessible assembly

Quick-release fastener for quick and easy attachment of the gripper to the robot

Optionally attachable flexible fingers

For increased flexibility and the gripper’s range of application

Specifications

Function

Gripping

Robot Compatibility

UR 3/5/10/16

Stroke per Jaw

3mm – 10mm

Max gripping force

40N – 230N

Weight

0.36kg – 1.11kg

Recommended workpiece weight

0.2kg – 1.15 kg

Cable Length

90mm – 4000mm

Available In The Following Areas

With an extensive background in a variety of industries, Cross has relationships with a number of leading brands, including exclusive distributorships in some areas. We are proud to offer SCHUNK in the following areas:
