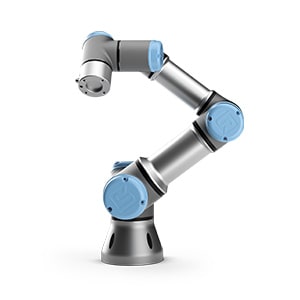

UR3e Collaborative Robot
Product Overview
The UR3 collaborative robot is a smaller collaborative table-top robot, perfect for light assembly tasks and automated workbench scenarios. The compact table-top cobot weighs only 24.7 lbs (11.2 kg), but has a payload of 6.6 lbs (3 kg), 360-degree rotation on all wrist joints, and infinite rotation on the end joint. These unique features make the UR3 cobot the most flexible, lightweight collaborative table-top robot to work side-by-side with employees in the market today.
As a Certified Systems Integrator for Universal Robots, the automation team at Cross Company can develop a specialized solution for your operation, utilizing the UR3e, to improve your process. With a expertise in automating manual processes in a range of industries, our team can scope out the best collaborative robot to utilize for your process and implement customized options to improve quality, raise efficiency, and reduce risk.
UR3e Features and Benefits
Due to its small size, the UR3e is the ideal definition of a collaborative, industrial robot. Designed to optimize efficiency in confined workspaces, the UR3e offers unmatched flexibility and precision. While the cobot can be mounted on a table working side-by-side with employees, it can also be integrated within a separate workstation for solutions including picking, assembling, and placing parts.
With its small footprint and lightweight design, the UR3e seamlessly integrates into any production environment, complementing human workers and maximizing productivity. This cobot is equipped with cutting-edge safety features, ensuring safe collaboration between humans and machines.
Enhance your operations, improve quality, and stay ahead of the competition with this compact automation solution.
Empowering
Don’t be fooled by its size – the UR3e offers high-end performance just like our other cobots. Its precise movements and high repeatability allow for delicate and intricate tasks.
Agile
Create new solutions, re-use programs for recurrent tasks and move the cobot to new processes if required.
Employee-support
Give your employees the freedom to focus on what they are best at and leave the rest to the cobot.
UR3e Specifications
Reach: 500 mm / 19.7 ins
Payload: 3 kg / 6.6 lbs
Footprint: Ø 128 mm
Weight: 11 kg / 24.7 lbs
UR3e Applications
The UR3e can be used in a variety of applications.
Teach Pendant
By default, the UR3e is delivered with a regular teach pendant. The teach pendant contains Universal Robots PolyScope software to control the cobot and ensures optimal safety when working closely to the robot.
A 3 position enabling devices, a so called 3PE TP, is available optional and can be purchased via UR+.
Controlbox
Built for any environment, the standard controlbox of the UR3e only weighs 12 kg (26.4 lbs) and offers a holder to attach the TP for optimal storage. The controller serves as the centralized hub for power, safety features, and communication, providing a compact and efficient solution for managing the operation of the UR3e system.
Certified System Integrator
The automation group at Cross Company is a certified system integrator for Universal Robots. Our automation team works with a variety of customers in a range of industries to develop automated solutions with the latest Universal Robots equipment.
Available In The Following Areas
Our automation team is based in North Carolina, but our physical footprint includes locations and team members in the following areas, so we’re always close!
Downloads
Videos
More information From Universal Robots
Interested in learning more? Contact a Cross team member today to discuss your application and see how we can help your operation!
